2023B "Expediter"šŸ”—

The KTag 2023B "Expediter" is a scaled-down version of the 2020TPC, designed for quick, low-cost manufacturing. It is software-compatible with the 2020TPC, although obviously the missing features won't work.

Differences from the 2020TPC:

  • Two-layer PCB, not four (cheaper!).
  • Supports one barrel and receiver, not two of each.
  • No support for "effects" NeoPixels.
  • No expansion port.
  • No headphone jack.
  • No Grove IĀ²C ports.
  • No capacitive touch sense inputs.
  • No USB console serial port. (The 3V3 console Tx and Rx are labeled on the silkscreen.)
  • We plan to have these manufactured with all the surface-mount components populated, but even if not, it won't take an entire Saturday to hand-solder one.

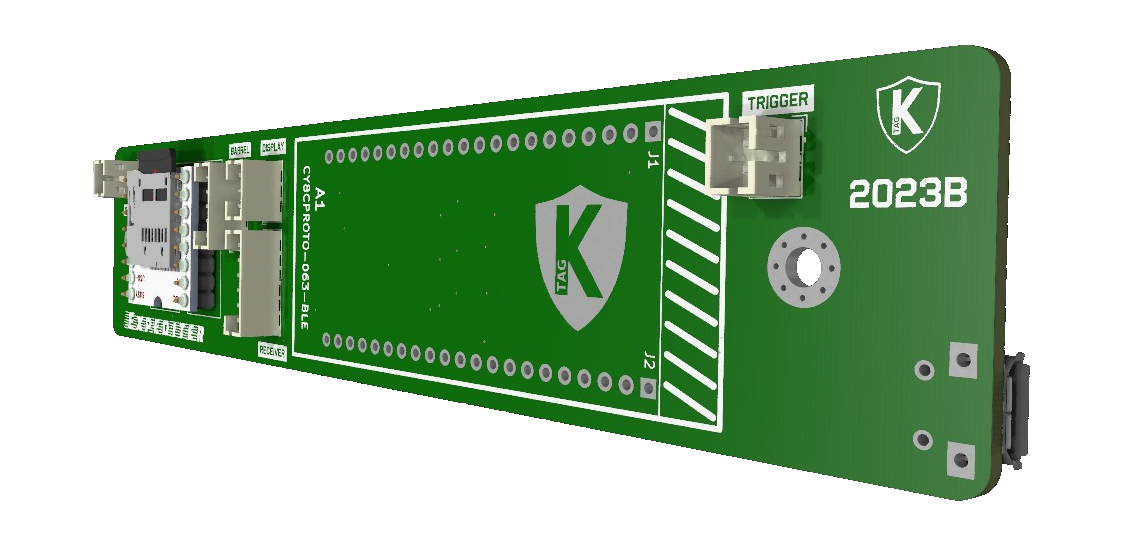

2023B

Bill of Materials (BoM)šŸ”—

2023B BoMšŸ”—
